ARC WELDING ROBOT OTC FD-V6

Name : ARC WELDING ROBOT OTC FD-V6

Code : OTC FD-V6

Title :

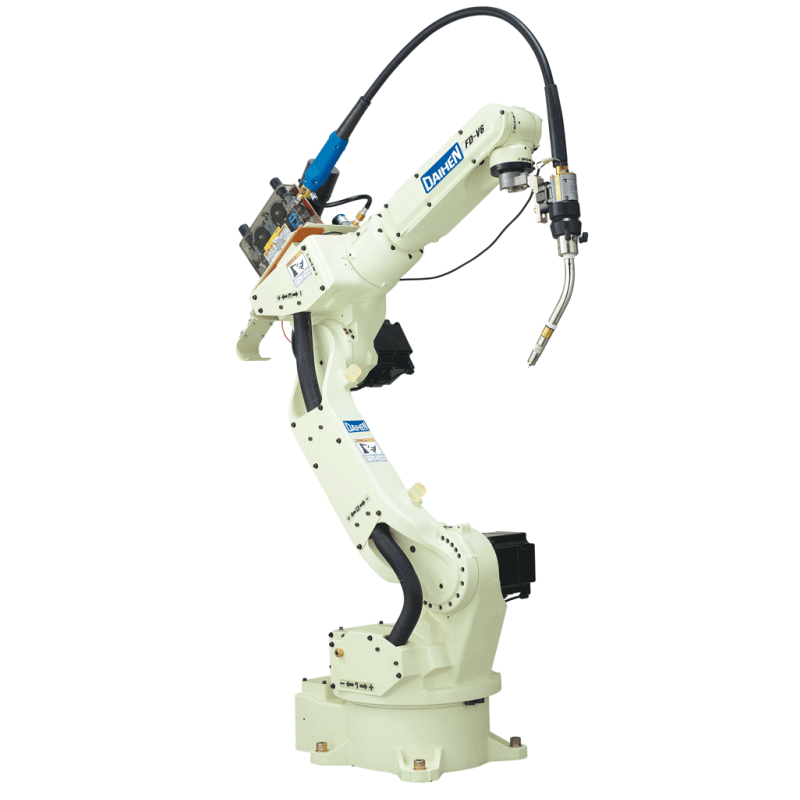

The robot OTC DAIHEN FD-V6 is suitable for virtually all MIG, MAG, CO2, and TIG welding applications, and Air Plasma Cutting applications.

Detail :

• Offers a wide working range with an independently articulated arm

• Seamless digital connection with all OTC DAIHEN brand welding power supplies

• Improved vibration restraining control provides smooth robot movement

• Built-in mechanical shock sensor for arc-welding

• Single source technology – all components are manufactured by OTC Daihen

• Highly versatile design supports many applications

• Windows XP based open architecture

• Large memory capacity and 40 Input / 40 Output control signals

• Advanced PLC functions allow for ladder diagram editing directly through the teach pendant

• Network capabilities – connects to Ethernet, DeviceNet, and PROFIBUS connections (may require additional hardware)

• Icon displays assist in quick & easy teaching

• 640×480 VGA color screen with LED backlight 65536 color display

• 3 position enable switch provides increased safety

• Multi-screen function allows user to view up to 4 screens simultaneously

• On-screen help function with complete instruction manuals

• Standard touch screen display with jog dial operation
