LARGE PAYLOAD ROBOT CX210L KAWASAKI
Name : LARGE PAYLOAD ROBOT CX210L KAWASAKI
Code : CX210L Robot
Title :
Detail :
The CX210L robot has a payload capacity of 210 kg, the highest of the general-purpose CX series Robots. The CX robots offer a large payload capacity and feature a robust, yet lightweight, hollow arm and a new smaller
CX210L Overview:
Payload: 210 kg
Axes: 6

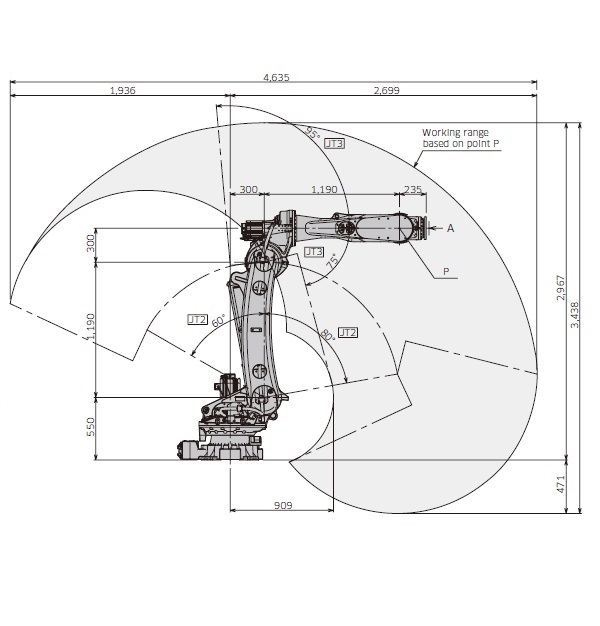

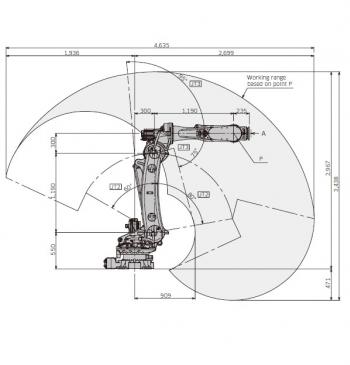

Horizontal Reach: 2,699 mm
Repeatability: ±0.2 mm
DATA SHEET
| Degrees of freedom | 6 |
| Reach horizontal mm | 2.699 |
| Werkbereik diameter mm | 5.398 |
| Hanteringscapaciteit Kg | 210 |
| Repeatability ± mm. | 0.06 |
| Weight Kg | 870 |
| Controller | E02 |
| Controller digital I/O | 32 inputs 32 outputs |
| Controller data interfaces | 2x Ethernet 1x USB 1x RS232C |
| Controller dimensions | E02: lxwxh 580x550x170 mm. weight 40 kg. |
| Controller power supply | E02: 3 phase 380-415 VAC ±10% 50/60 Hz Max 10 kVA |
| Controller safety category | E02: Safety Circuit: Category 4, Performance Level: e (EN ISO13849-1: 2008) |
